Azure DevOps Tips and Tricks for Pipelines and Boards

Most articles around Azure DevOps talk about the workings of the Pipelines. How to build and how to deploy. Some are about the Boards and Work Items but very few write about how all of these modules integrate with one another.

This article intends to provide a view to Azure DevOps if you use it’s multiple modules and how they interact with each other.

In terms of integration, wisely choosing your source code repository provider is important. If your source code is hosted in Azure DevOps’ Repos or GitHub, then you’re covered, but if you use Bitbucket, Gitlab or any other provider… well… not so much.
For instance, you can easily setup Continuous Integration with Github, Bitbucket and of course DevOps’ Repos. Doing the same with other providers might take a lot more work (and workarounds), more on this later.
Suffice to say that if you’re looking for full (or simpler) access to all the possibilities Azure DevOps has to offer then you should consider moving your code to either GitHub or DevOps’ Repos.

I’m not going to discuss how to create build and release pipelines, there’s a lot of resources around you can check. So I’m assuming you already have a build and release workflow. So… where do you go from here?

I’d argue that one of the most important aspects of an automated build and deploy workflow is the visibility and feedback everyone has to get from the outcome of each pipeline. If a build is passing or not, if a deploy is stuck or generating errors, the team should be notified in real time.

Under Project Settings > General > Service Hooks one can setup a lot of services and different types of triggers. If you use Slack or Teams then this is a must. Just select one of them from the list and setup triggers like Build completed, Release created, Release deployment completed or Run stage waiting for approval (useful when you have stages that require manual approval).

Badges also provide this kind of insight, but they are not really a notification system. Nevertheless it’s an important element to have in your docs, and Azure DevOps provides you with a lot of them. You can get a badge from each build Pipeline‘s target branch. Just click on the pipeline and on the top right three dots menu, you’ll see the “Status badge” option.

Tip: you can change the label of a build badge by adding &label=MyCustomLabel to the image URL. So you can clearly identify the type of build (dev build or staging build, for instance).

Release pipelines provide their own set of badges (a bit of a hidden functionality IMMO). To find them: edit the Pipeline > Options > Integrations > check “Enable the deployment status badge”.

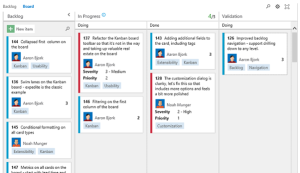

Azure DevOps provides a nice set of options to Project Managers under the “Boards” menu item. Managing tasks through different card types and their states, assignments, Kanban boards, custom dashboards, backlog, custom queries and a lot more. I’m not a PM myself, so I can’t really comment on how it compares to other systems, but it looks quite decent.

Having your tasks organized and managed under Boards might be very cool, but that’s only one side of the coin. Having your tasks connected directly to your source code and deployment pipelines, is a great way to build a bridge between PMs and Devs.

If you already work with Boards you’ve surely noticed the right sidebar with the “Deployment” and “Development” fields. You can manually configure and link commits in the source code to Work Items, sure… but it’s a lot better (and easier) to have this setup automatically.

Now, this isn’t really recent news, conventional commits and linking issues to code commits has been around for quite some time (needless to say, if you’re not using it, you really should). The thing with Azure DevOps is that automatic integration only works with internal Repos or GitHub (hence what I mentioned previously about choosing wisely).

• Using Azure’s Repos
  Just commit your code referencing the Work Item ID inside your commit title or description using the format: #1234.
• Using GitHub
  First you’ll have to go to Project Settings > GitHub Connections > Connect your GitHub Account. After setting up the connection, everything works the same way as with Repos.

Tip: If you follow the conventional commits guidelines you can automatically change the state of a work item to closed by using “fix: #123”, “fixes: #123” or “fixed: #123” in your commit message.

You can also link build pipelines, but only if you’re using Repos. Just click on the pipeline, go to Settings and you should see a checkbox “Automatically link work items included in this run”.

• Check related code changes directly in the Work Item.

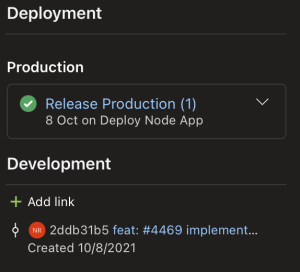

  As you can see in the picture above (the Development section), following these conventions provides direct linking to source code changes related to that Work Item.
• Check Deployment status directly in the Work Item.
  This is also automatically filled when a Release that contains a commit with the Work Item ID is triggered. To activate this you’ll also need to edit the Release Pipeline > Options > Integrations > check “Report deployment status to Boards” and select the Stage and Deployment Type.

So PMs and Devs now have a way of tracking not only which changes were made regarding a certain task, but also when they were made and when they were released to a certain environment.

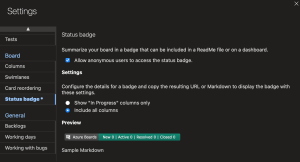

As an extra, if you really love your badges, you can also get a nice Work Items summary out from the Boards badges. Just click on Boards > Boards > top right cog “Configure Team Settings” > Status Badge. You should see a screen like the one below.

If you know any more cool tips and tricks of Azure Devops, feel free to share!

Resources:

Link work items to support traceability – Azure Boards

Azure Boards-GitHub integration – Azure Boards
